MM Residential Building
A vertical Planted City
2018, Chiyah, Lebanon
BUILT UP AREA 4,500 sq.m

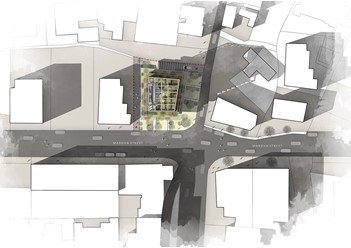

MM residential building sits on a 900-square-meter rectangular site at the intersection of two streets in Chiyah, a fast-developing suburb of Beirut.
MM Residential Building sits on a 900-square-meter rectangular site at the intersection of two streets in Chiyah, a fast-developing suburb of Beirut.

The new structure holds 14 residences plus a retail space on the ground floor, in a vertical stacking of floor plates set around a central and open planted core. The structural façade offers plenty of flexibility for the ways in which the building can be inhabited, both in plan and in section. Single-floor apartments, duplexes and penthouses can be integrated into the volume, in a nearly random pattern, so that residents can customize their own living space.

Pocket Gardens and linear terraces run along four façades, creating 360-degree views of Beirut and its environs. The planted surfaces are buffer zones between the private internal spaces and the immediate surroundings. At the same time, the building soars from the ground up as a single structural vertical planted element, extending out of the busy city life.

MM Residential Building is a vertical green landmark with a unified structure whose multi-layered façades act as a protective translucent shell vis-à-vis the street and the surrounding buildings. In a contemporary and innovative manner, the new landmark offers residential solutions that are both practical and enjoyable, while giving city residents new ways to inhabit the urban environment.
Read More
Read Less
Anastasia Elrouss Architects
Architectural Consultant
Quadrature
Developer
DIAGRAMS & MODELS
The vertical green city responds and criticizes its neighborhood by using vertical gardens as a buffer and as a manifesto of existence within the Chiyah neighborhood.

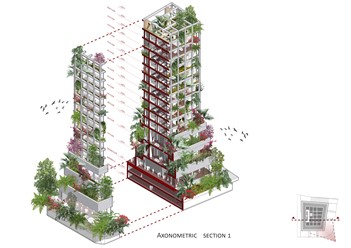

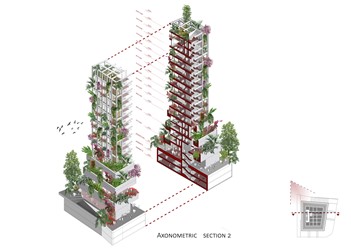

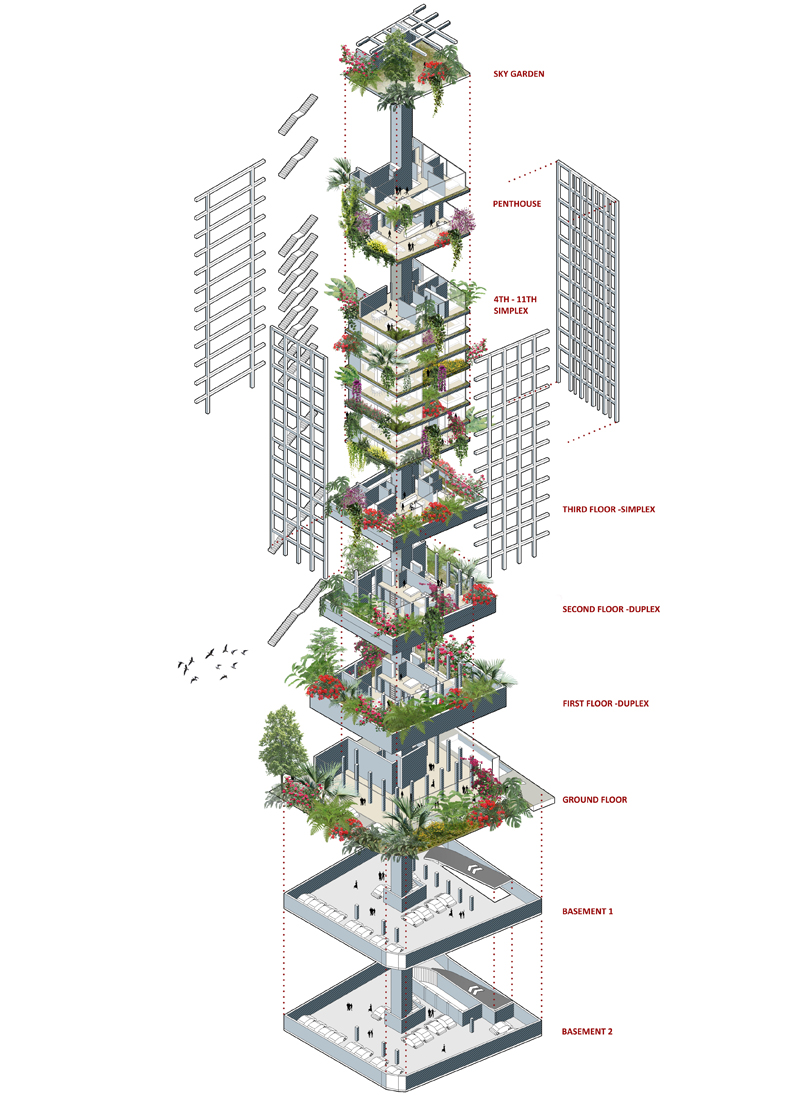

The vertical green city responds and criticizes its neighborhood by using vertical gardens as a buffer and as a manifesto of existence within the Chiyah neighborhood. Several concept diagrams show the interaction between a very dry congested area with a fluid forested vertical environment at the same time, creating internal privacy for its inhabitants. The dissection of the main elements of the building through exploded diagrams shows the simplicity and cost efficiency of the project, while highlighting the adaptation of the external shell to internal needs and to the existing context. A green pyramid at the bottom with high ceiling spaces pulls the 5th floor up into having a panoramic view toward the city horizon, offering lighter and a better quality of life.
DRAWINGS

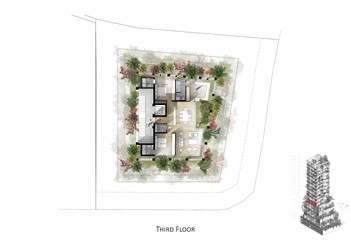

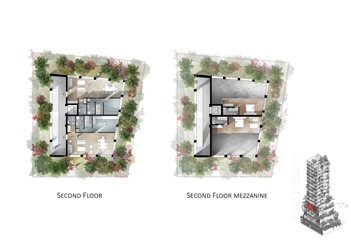

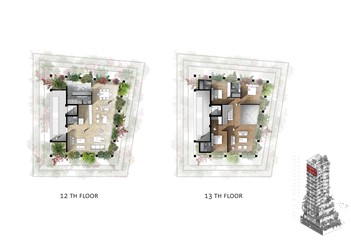

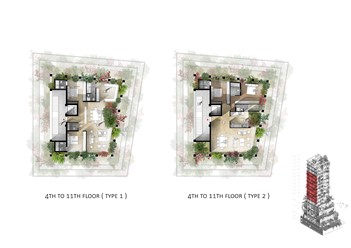

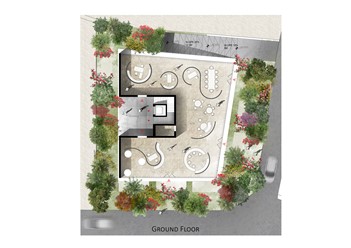

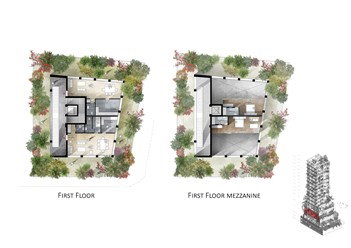

The plans and sections portray the central core structural element with a structural concrete façade.
The plans and sections portray the central core structural element with a structural concrete façade. The internal partitions are wooden panels creating many scenarios of a simplex, duplex or triplex formation through time. A main vertical staircase is completely opened, with vertical gardens around it acting as a green buffer and a meeting point for the building’s inhabitants.
